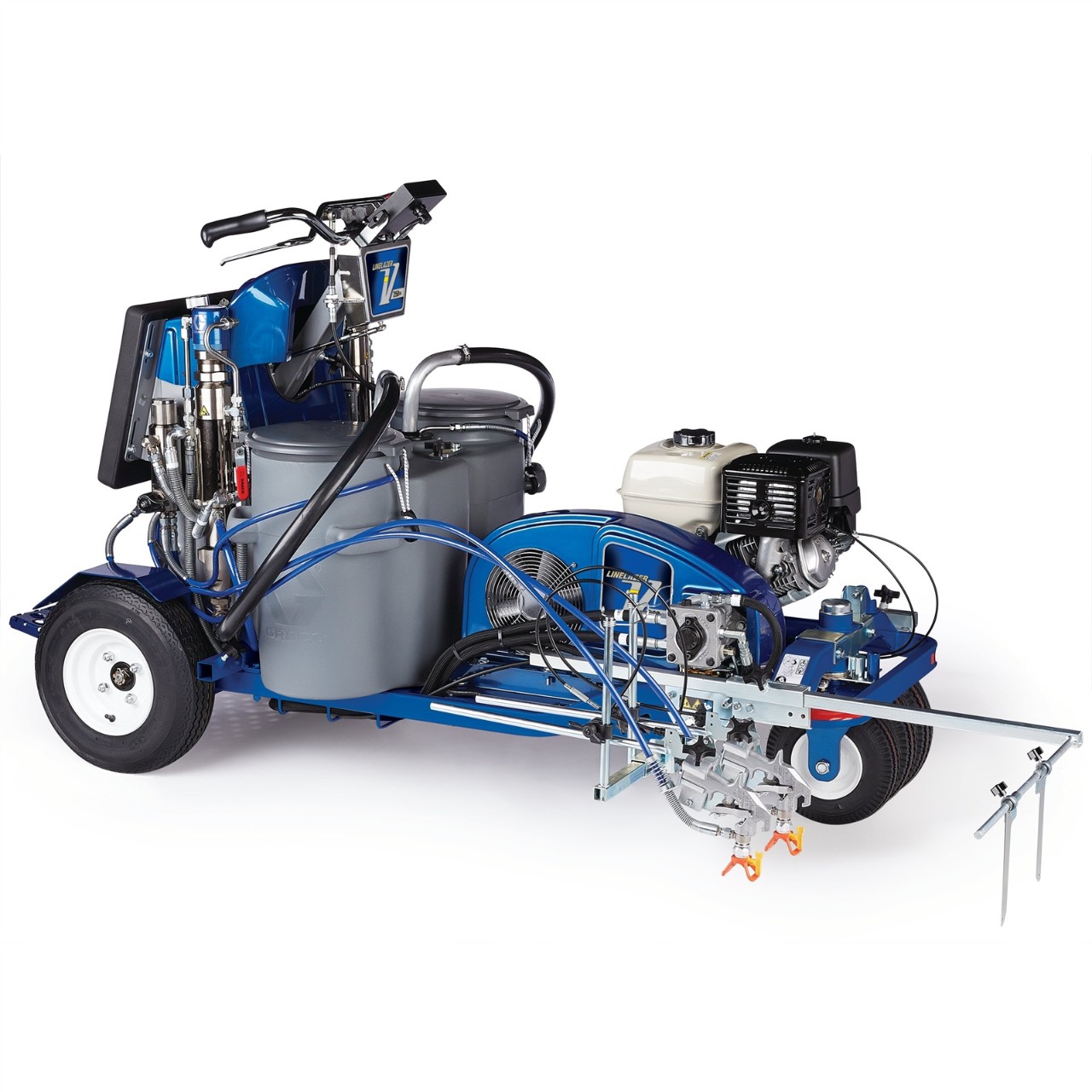

LineLazer V 250DC

  • Dual Colour HP Automatic 2 Gun Striper P/N 17H471
  • By spraying two colours simultaneously or independently, the LineLazer V 250DC HP Automatic Series provides high-production dual colour striping capability that is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-colour stripes.

Overview

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • No-stall design
  • Dual Endurance Chromex Pumps
    • Precise Material Flow
    • Consistency with a wide range of striping materials
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue – push button line production
    • Quality solenoid driven system
  • Remote Mount Control Box
    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • Dual 68 Litre Paint Hoppers
    • Less refilling
    • Simultaneously spray two colours and refill less often
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred – excellent power and proven reliability
    • Oil alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • Front or Rear Gun Mount
    • Straighter long lines
    • Use up to six guns
  • Additional Features
    • Self-Centring Front Wheel
    • Easy Handlebar Adjustment
    • High-Capacity Cooling System
    • Easy Out Pump Filter

Specifications -

  • 3,300 psi
  • Max Tip Size 1 Gun to 0.055”
  • Max Tip Size 2 Guns to 0.039”
  • 9.5 litre/min
  • GX390 13 HP Honda Electric Start Motor
  • 68 Litre Paint Tanks (2)
  • Two Spray Guns, 6.0m x 3/8” Hose, Tip & Guard
