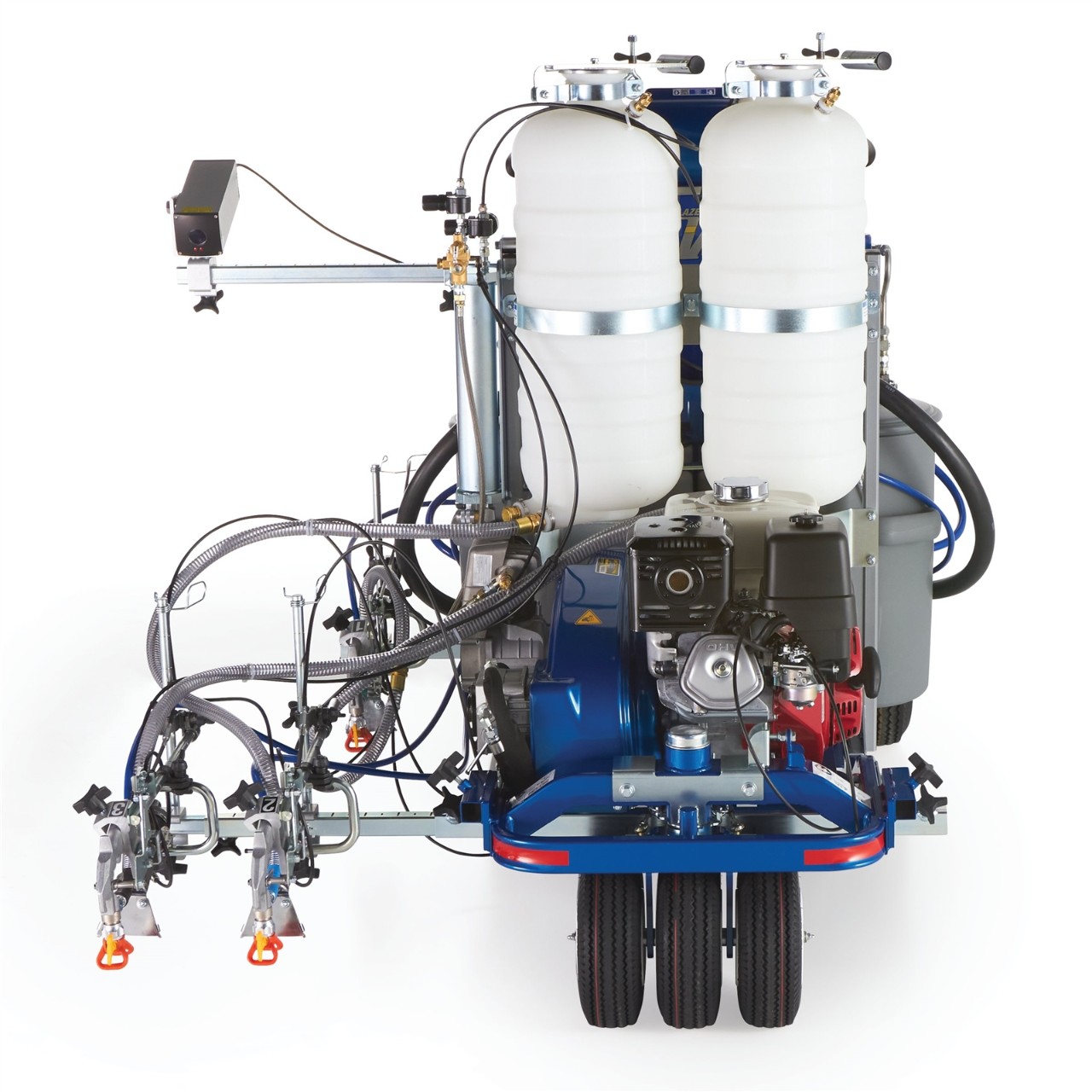

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

• Pressurised EZ Bead System Dual High-Efficiency Hydraulic Motors
  • Superior Bead Application Performance
  • Ensures proper bead flow and paint penetration
  • Uninterrupted Performance
  • No-stall design
• Dual Endurance Chromex Pumps
  • Precise Material Flow
  • Consistency with a wide range of striping materials
• Automatic Paint Gun System
  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue – push button line production
  • Quality solenoid driven system
• LazerGuide 3000 Long-Line Lazer
  • Easier, laser-straight lines
  • Longer distance accuracy
  • Highly-visible laser guise
  • Faster, simple operation
• Remote Mount Control Box
  • Striping Information At-A-Glance
  • Simple to use and easy to see in all conditions
• Honda® GX Engine
  • Reliable, Easy-to-Start Power
  • Contractor-preferred – excellent power and proven reliability
  • Oil alert shuts down engine to prevent damage if oil level drops too low
• Electric Start
  • Fast starting
• Additional Features
  • EasyMark Gun Adjustment System
  • Front or Rear Gun Mount
  • Self-Centring Front Wheel
  • Easy Handlebar Adjustment
  • High-Capacity Cooling System
  • Easy Out Pump Filter

Specifications -

• 3300 psi
• Maximum Tip Size 1 Gun to 0.055”
• Maximum Tip Size 2 Guns to 0.039”
• Maximum Tip Size 3 Guns to 0.031”
• 9.5 litre/min
• GX390 13 HP Honda Electric Start Motor
• 392 kg (No Paint, Beads Or Operator)
• 56 Litre Paint Tanks (2)
• Pressurised Bead System with two (2) tanks installed (Up to 63kg of beads)
• Three (3) FlexPlus Spray Guns
• 3.7m x 3/8” Blue Max II Hose, Tip & Guard
• LazerGuide 3000
