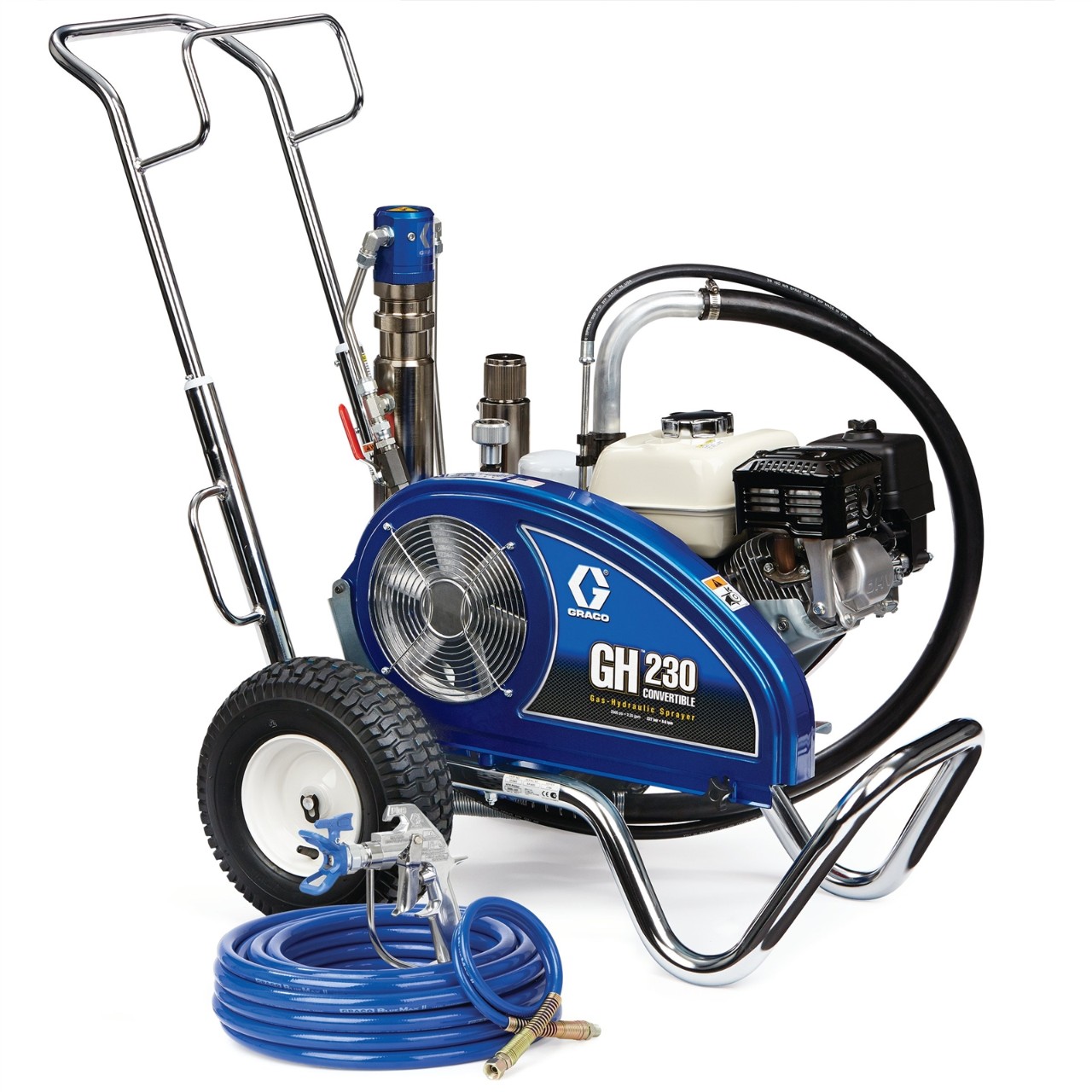

GH230 Hydraulic

  • Sprayer P/N 24W929
  • The GH 230 Convertible is the most versatile sprayer for the professional contractor looking for workhorse hydraulic performance for large commercial and residential construction jobs. Superior versatility with the ability to change out the pump lower and convert to electric power without tools.

Overview

Graco GH Standard Series sprayers deliver durability and performance for spraying heavier materials in demanding applications. This sprayer is capable of handling elastomerics, block fillers, gypsum, and dry fall.

  • Endurance Chromex Piston Pump
    • Lasts 2X longer than the next leading brand
    • QuikChange pump design allows you to swap the pump easily on the job
    • Faster cleaning with the QuikAccess intake foot valve
  • High-Efficiency Hydraulic Motor
    • Rock-solid performance time after time keeps you up and running
    • Faster, more responsive changeover
    • O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
    • Fewer moving parts mean less maintenance and longer life
  • High-Capacity Cooling System
    • Innovative design allows the pump to run cooler and more efficiently
    • Hydraulic reservoir is tapered on the bottom
    • Provides easier and more thorough fluid changes
    • Cooling fins on reservoir deflect heat away from sprayer
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred
  • Easy Out Pump Filter
    • Easy maintenance & less clogging
    • Exclusive inside-out filter design won't collapse to ensure a quality finish
    • Vertical design for less mess
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high-pressure dumping
  • Rugged, Durable Cart Design
    • Thick chrome over welded steel withstands rugged environments
    • Full pneumatic wheels absorb impacts and vibrations
    • Retractable handle doubles as coiled hose storage
    • Tilts on its nose for service in the field
  • Electric Motor Capability
    • Indoor and outdoor use
    • Quickly swap the gas engine for an electric motor in seconds – without tools
    • Electric motor kit sold separately
  • Ready to Work
    Includes everything you need to get spraying:
    • Silver Plus Airless Spray Gun
    • RAC X SwitchTips and Guard
    • 50 feet of BlueMax II Airless Hose

Specifications -

  • 3,300 psi
  • 8.9 litre/min
  • 6.5 HP Honda Pull Start Motor with Oil Alert
  • 76 kg
  • Silver Plus (246240) Spray Gun (1)
  • 15m x 9.5mm BlueMax II Airless
  • RAC X Guard & 517, 1231 Spray Tip
  • Endurance Pump
  • ProConnect
  • Convertible (electric-petrol)
  • Hose Rack
  • Onboard Tools
